Left Drawer – Motherboard Tray

The Motherboard Tray is a custom designed piece of aluminum.
It is made to hold an ATX-Sized motherboard:


Drawing

The layout of the ATX Tray – Dimensions in mm

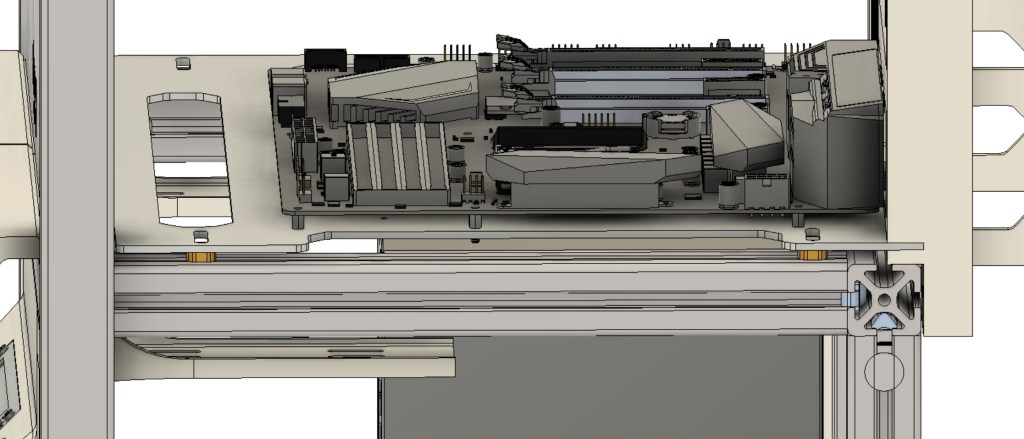

Motherboard installation

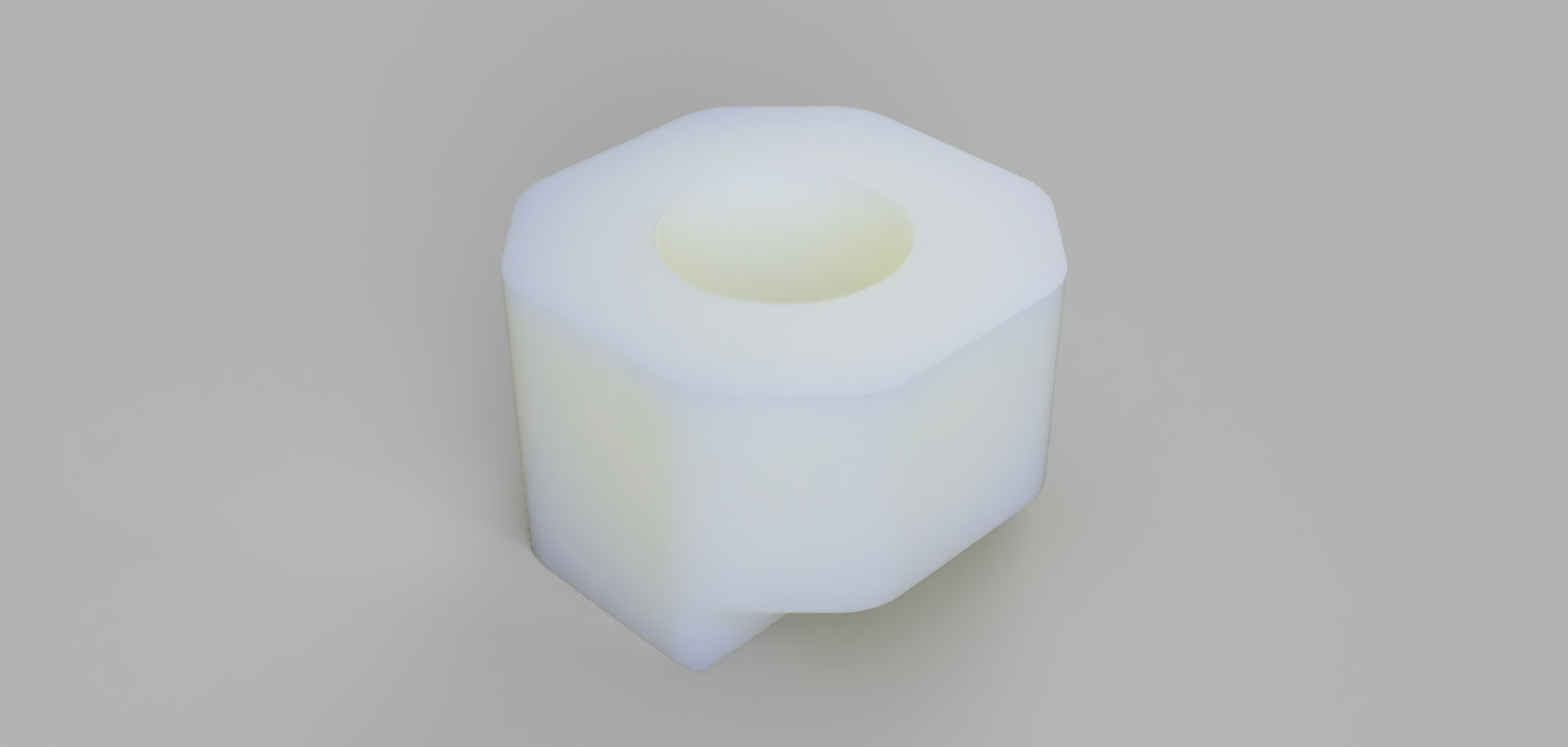

The Motherboard is installed to the ITEM frame using the standard ITEM T-Slot Nuts. There are 3D-designed spacers which are used to install the mother board with the correct distance to the frame.


List of parts

PICPOSMANUFACTURERARTICLE NUMBERDESCRIPTIONQUANTITYREMARKS
010Motherboard Tray1Custom Design as per drawing
020Motherboard Spacers4Custom Design
030ITEM0.0.419.46T-Slot Nut 6 St M4, bright zinc-plated16
040ITEM8.0.002.07Button-Head Screw M4x1416
