There are many brackets which have been designed and 3D printed, laser cut or cnc machined. Below an overview

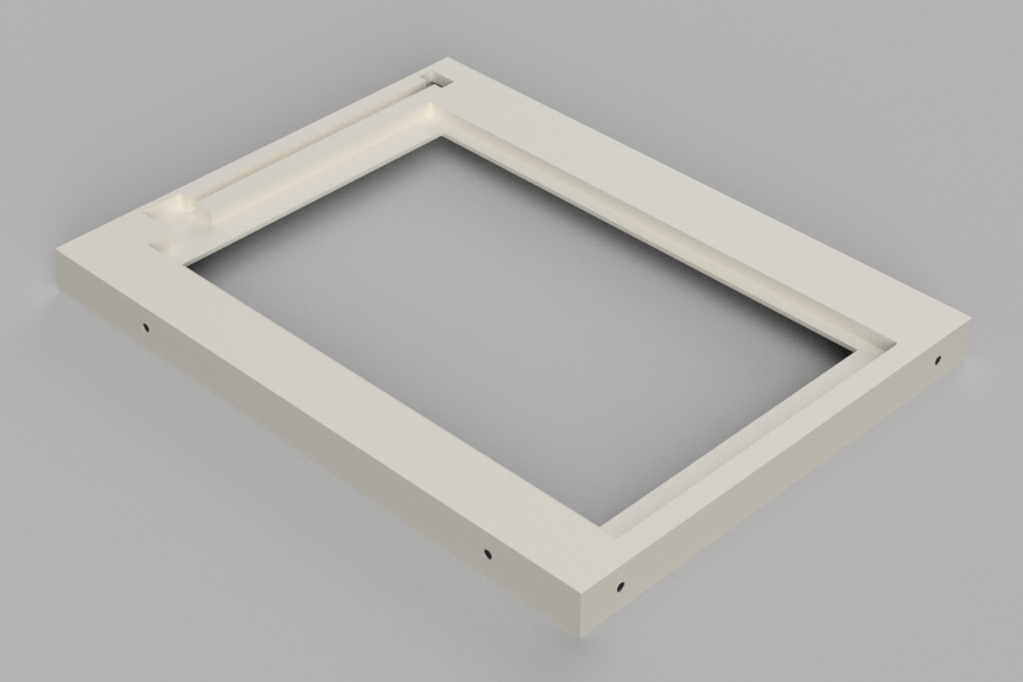

Status Screen Frame/Mount
This 3d-printed mount is made of various PLA pieces and glued together. In addition it was sanded and spray painted

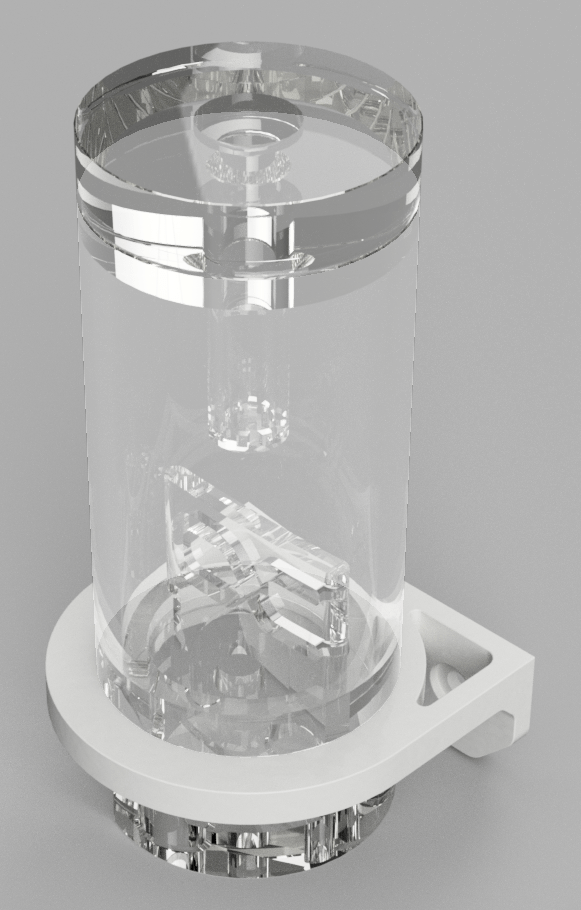

Top/Back Reservoir Bracket
3D printed part which is attached to the frame by using two ITEM T-Slot Nuts.

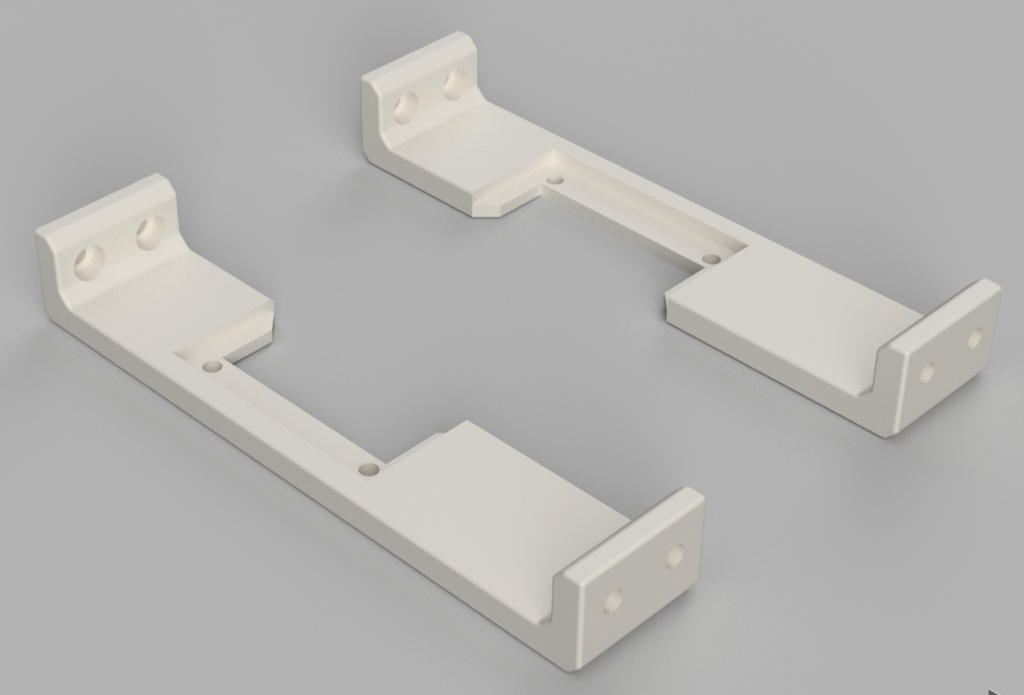

Radiator Bracket
3D printed part which attaches the radiators to the main frame. The bracket itself is attached using a customized t-slot knob which can also be 3D printed.
ATX Power Supply Bracket
A 3D printed bracket which attaches the ATX power supply to the left drawer. ITEM T-Slot nuts and M5x12mm screws are required to install it accordingly.
SFX Power Supply Bracket
A 3D printed bracket which attaches the SFX power supply to the main frame. ITEM T-Slot nuts and M5x12mm screws are required to install it accordingly.

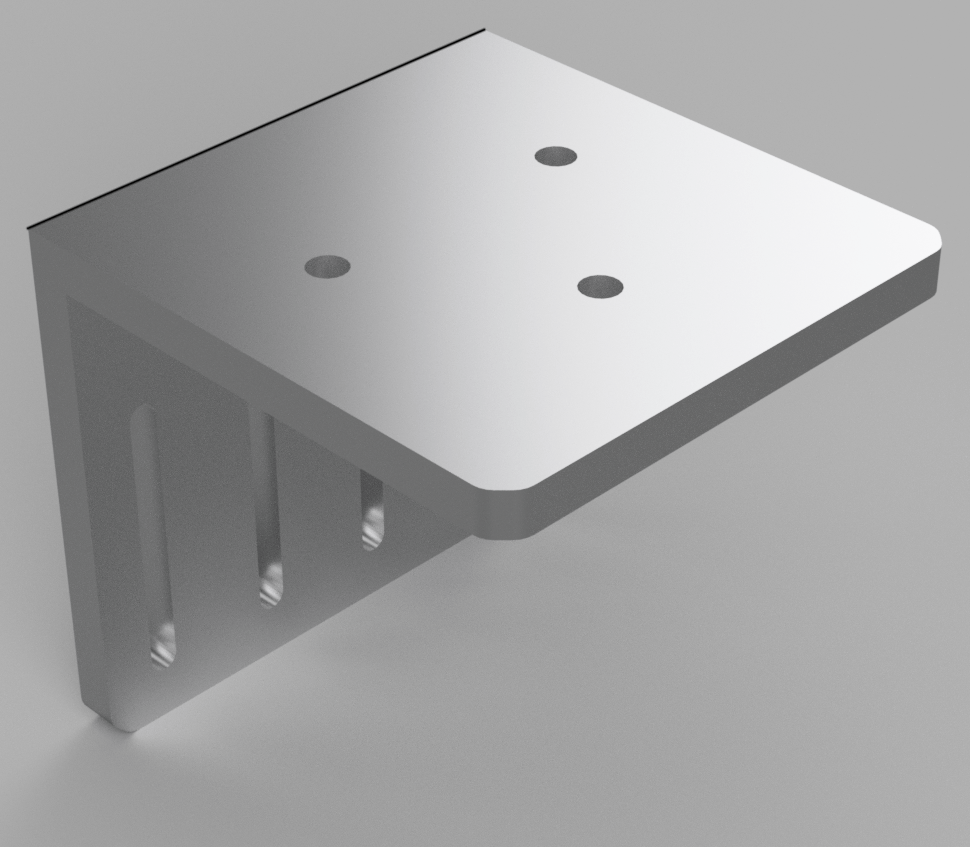

Monitor Lift L-Bracket Mount
This L-Bracket was designed in order to connect the monitor lift to the main frame of the table. The basic idea is to have a flexible mounting point for a monitor lift. In addition, the table top itself remains unblocked and the middle top cover still can be removed. It is made of a thick aluminum sheet and bended into shape.

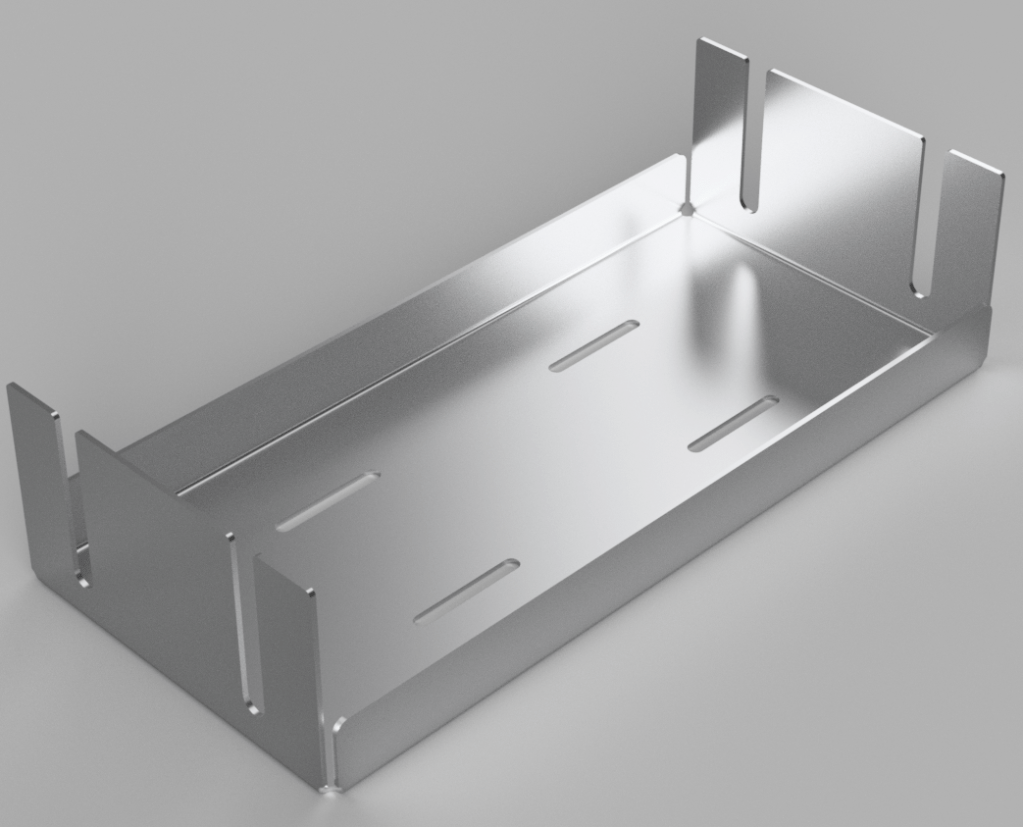

Water Pump bracket
This bracket is a bended aluminum sheet part. I found a company which offers a digital upload and preview of the parts. The water pump is installed by using rubber dampener screws. The bracket itself is mounted to main frame using ITEM t-slot nuts.
